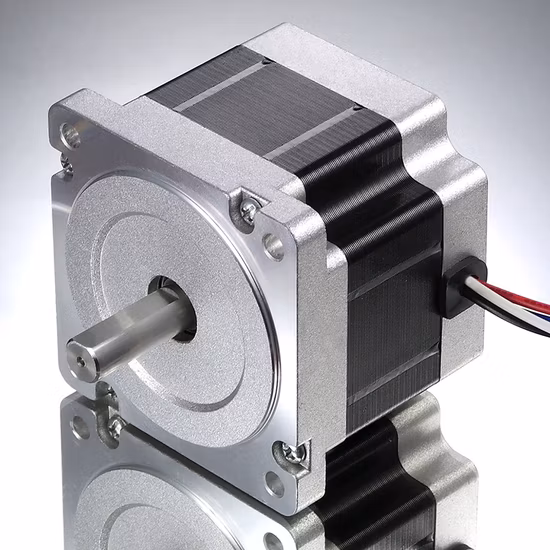

86 mm NEMA34 High Torque CNC Hybrid Electrical Stepper Motor
86 mm High Torque Hybrid Stepper Electrical Motor for CNC Features: High torqueHigh accuracySmooth movement Stepper moto
Basic Info.
Model NO. | 86BYGHSeries |
Operate Mode | 2 Phase-8 Parts |
Type | Magnetic-Electric |
Certification | ISO9001, RoHS, CE |
Brand | Shengyang |
Usage | CNC |
Payment Term | 30% Deposit, 70% Balance Before Shipment |
Applications | Robot joint |
Use | stage lighting |
Keyword | 3D PRINTER |
Shaft End Length | 30mm (1.18 in) |
Connectors | Lead Wires |
Shaft | D-Cut Shaft |
Step Angle | 1.8 Degree |
Motor Series | 86 Bygh |
Transport Package | Export Carton |
Specification | RoHS, ISO9001: 2015 |
Trademark | SY |
Origin | Zhongshan |
HS Code | 8501109990 |
Production Capacity | 3000000 PCS/Year |
Product Description
86 mm High Torque Hybrid Stepper Electrical Motor for CNCFeatures:
High torqueHigh accuracySmooth movement
Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included. The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life. All the derived products of us can be customized for your needs.
Product Description
1. Speficications:
Motor Model: 86BYGH 204-C-30Step Angle: 1.8°± 5% full step, no load Motor Length: 100 mm (3.94 in)Holding Torque: 4900 mNm (694 oz-in)Rated Current: 5.2 A DCResistance per Phase: 0.43 ohmInductance per Phase: 2.7 mHShaft Length: 30 mm (1.18 in)Shaft: D-Cut ShaftConnectors: Lead Wires Ambient Temperature: -24 ºC - +60 ºC Relative humidity: 90% MAX Resistance Accuracy: ± 10% Insulation Resistance: Larger than 100mΩ 500V DC Dielectric Strength: 600V AC for 1S, leakage current less than 1mA. 2. Note: Performance and parameters are customized, just simply send your motor diagram or samples to us, we will provide the competitive price for your reference.3.Payment term:T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2015 quality system, all of raw materials comply with RoHS,CE contact us and talk details.
Contacts: Ms. Rita LawMobile: (+86) 13631101993shengyangmotor.en.made-in-china.com
Series & Length | Model Number | Holding Torque | Rated Current | Resistance per Phase | Inductance per Phase |
mNm oz-in | A | ohm | Mh | ||
86BYGH0 68mm (2.64in) | 86BGYH002 | 2500 354 | 3.8 | 0.8 | 6 |
86BYGH1 77mm (3.03in) | 86BYGH102 | 411.6 58.28 | 5 | 0.65 | 4.5 |
86BYGH2 100mm 3.94in | 86BYGH204 | 4900 694 | 5.2 | 0.43 | 2.7 |
